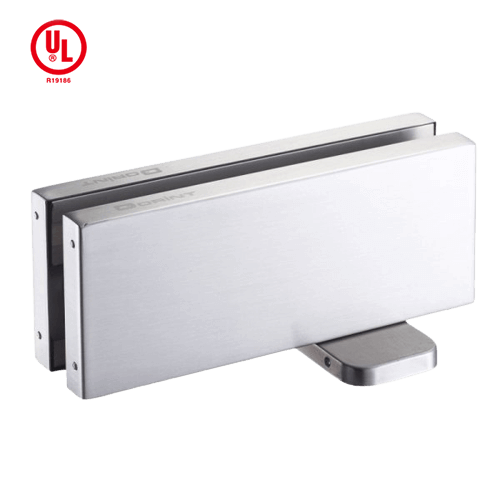

CFSG5
- Safety certified by UL.
- CE marked, EN1154 & EN1634-1 Fire tested
- Surpasses traditional floor hinges in terms of functions.
- Maximum door opening angle 150° to both sides.
- With hold open at 90°
- Non hold open available.
- Door closing efficiency at 70% or above.
- Allows the door to be opened effortlessly and closed in a steady manner.
- Can be easily and rapidly installed, without damaging the floor structure.
- Maximum door width: 1250 mm
- Suitable door thickness: 10-15 mm
Description
| DATA AND FEATURES | DFG885 | ||
| Variable closing force | Spring strength(EN) | #5 | |
| Standard doors | ≦950mm | ≦100kg | — |
| ≦1250mm | ≦150kg | 885 | |
| Suitable door thickness(mm) | 10～15 | ||
| Body dimensions(mm) | Length | 197 | |
| Height | 80.5 | ||
| Projection | 42 | ||
| Angle of opening | 150。 | ||
| Power adjustable by spring | X | ||
| Sweep speed adjustable | V | ||
| Latching speed adjustable | V | ||
| Hold-open | Without hold open | O | |
| Hold open at 90° | V | ||
| Non-handed | V | ||
| Guarantee / years | 5years | ||
| V = yes X = no O = option | |||
