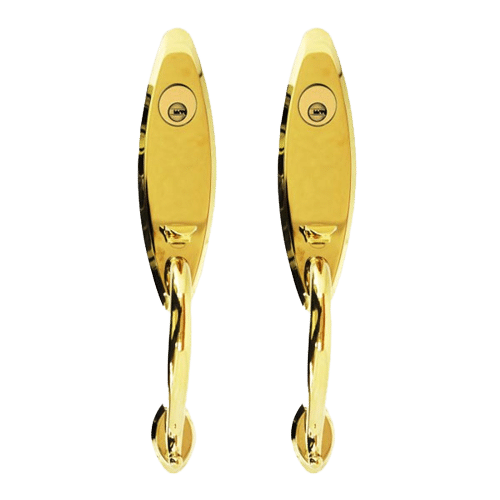

DM600-P18

AA MORTISE SET
Trim is made by solid forged brass.
Major interior working parts are made of solid forged brass.
Lock hand is filed reversible.
UL approval for fire test 3 hours.
ANSI GRADE 3 MORTISE LOCK CASE. Cycle tests is offer 800,000 times.

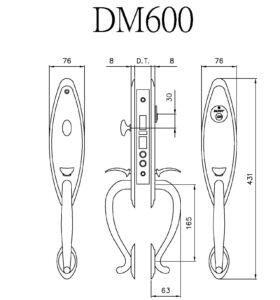

BACKSET : 2-1/ 2″ (64mm), 2-3/ 4″ (70mm), 3-1/ 2″ (90mm) available

SPACING :
C to C Knob hub to Cylinder 3-5/ 12″ (87mm)
C to C Knob to Turn piece 2-1/ 4″ (57mm)

FACE PLATE: Forged brass, 8″ (L) x 1.25″ (W) x 0.063″ (T) [ 203mm x 32mm x 1.6mm ]

UNIVERSAL STRIKE: Forged brass, 4.875″ (L) X 1.25″ (W) X 0.0788″ (T) [ 124mm x 32mm x 2mm ]
