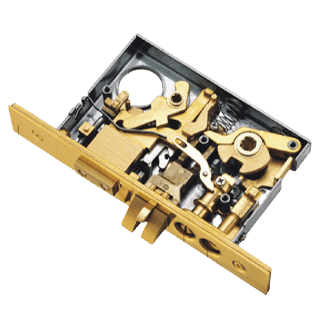

AA MORTISE LOCK
AA MORTISE
- Major interior working parts are made of solid forged brass. Case and case cap are made of stainless steel.
- Lock hand is filed reversible.
- UL approval for fire test 3 hours.
- ANSI GRADE 3 MORTISE LOCK CASE. Cycle tests is offer 800,000 times.
BACKSET : 2-1/ 2″ (64mm), 2-3/ 4″ (70mm), 3-1/ 2″ (90mm) available
SPACING :
C to C Knob hub to Cylinder 3-5/ 12″ (87mm)
C to C Knob to Turn piece 2-1/ 4″ (57mm)
DEAD BOLT :
Forged brass, 0.511″ x 1.181″ x 1″ throw with two saw-proof hardened steel inserts.
[ 30mm (L) x 13mm (W) x 25mm (throw) ]
AUXILIARY LATCH : Brass, simultaneously retracts with latch bolt
LATCH BOLT :
1″ x 0.59″ x 0.67″ throw in forged brass material with anti-friction trigger, reversible function.
[ 25mm x 15mm x 17mm ]
HUB: Forged brass with two-way rotation broached on the octagon & diamond (8.0SQ/ 7.3D) , one-way rotation on lever strength function.
ARMORED FRONT: Forged brass, 7.9″ (L) x 1.22″ (w) x 0.157″ (T) [ 201mm x 31mm x 4mm ]; 1.06″ (W) [ 27mm ] size is available for 40~44mm door thickness.
FACE PLATE: Forged brass, 8″ (L) x 1.25″ (W) x 0.063″ (T) [ 203mm x 32mm x 1.6mm ]
UNIVERSAL STRIKE: Forged brass, 4.875″ (L) X 1.25″ (W) X 0.0788″ (T) [ 124mm x 32mm x 2mm ]
FUNCTION CHART:
